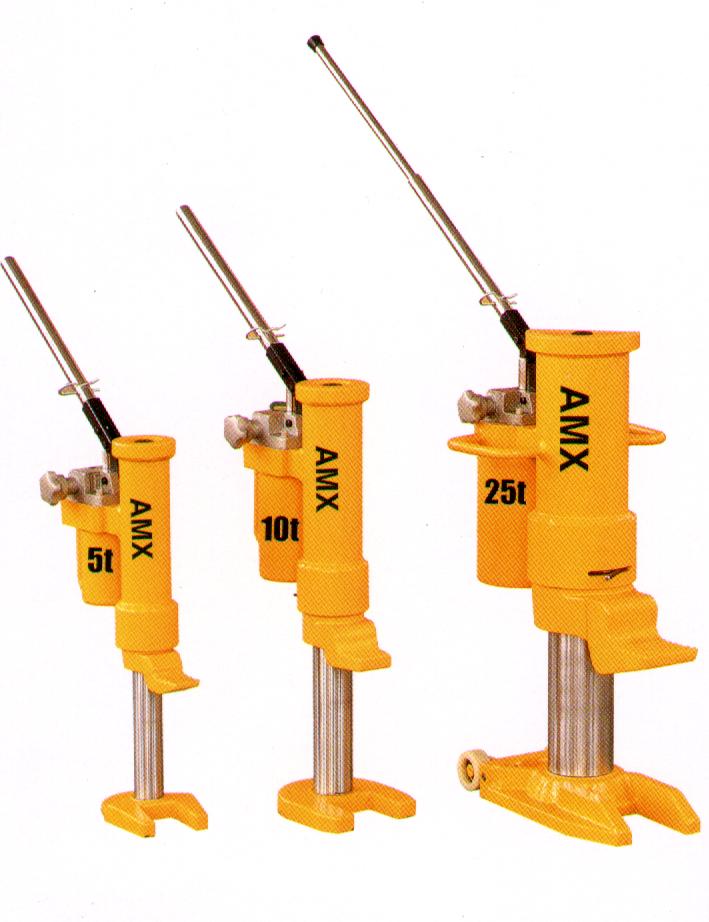

AMX HYDRALIC TOE JACK



AMX hydralic jack for repair,maintenance and instalation of heavy machines.
  • Compact and stable construction.
  • Can be used in any position.
  • Very low foot maesuring only 25mm.
  • Housing revolves 360 degrees.
  • Lowering speed can be accurately adjusted.
  • Protected against overloading.
  • Pump lever is removable.
  • According to US standerd USA ASME/ANSI B30.1.1986.



CAUTIONS

Toavoid possible personal injury or damage to equipment.

  • Do not exceed the maximum load capacity of the jack.
  • Do not add additional load to a lifted load.
  • Do not use in unstable or hazardous positions.
  • Unit must be used on flat surfaces able to carry the load.
  • The load must be stable during lifting,an unstable load may cause the jack or load to slip.
  • Do not use jack(s)if damaged,altered,or in poor condition.
  • Do not lift people or loads with people on them.
  • Do not lift at the end of the toe,fully engage the load with the toe.
Type Capacity

(ton)

Lifting range

of foot (mm)

 Lifting range of

Head(mm)

 Max.

laver force(kg)

 Weight

(kg)
TJ50 5.0 25-206 368-574 38 20
TJ100 10.0 25-233 413-646 40 40
TJ250 25.0 58-233 505-740 40 92
